Hinge Joint Knot Fence

Product Description

The livestock wire fence is usually made by low carbon steel wire, mild carbon steel wire and high tensile steel wire.



The hinged joint knot is the most common knot in agricultural fencing. The knot is formed by wrapping the vertical stay wire pieces around the line wire at each intersection. This design can also absolve animal impact without damage and is the most economical knot choice available.

Besides, they also can be used with barbed wire or chicken wire for farm fencing, garden fencing, road fencing, and forest fencing.



The hinge joint knots also called field fence, grassland fence, and cattle wire fence. It can be used with stakes, wood timber, and another post. This kind of wire fence is strong for keeping and breeding animals. We offer have innovative and firm structure, flat surface. On the basis of the ordinary Field fence, an advanced pressure wave process is adopted, and one or two deep 12 mm wide and 40 mm bends are pressed on each mesh of the horizontal wire. This kind of technology makes the mesh surface flatter and effectively enhances the elasticity of the mesh surface. It alleviates the deformation of the mesh surface caused by thermal expansion and contraction in areas with large climate change in winter and summer. Since the ripple increases the cushioning force of the mesh surface, the mesh surface can automatically return when the beast hits.



The Stay wire and the Line wire can be adjusted.  It can make to be a few wires or more wires according to the farmland request.  For example, if your only for Person proof you just can choose the bigger line wire distance. If you need proof the small animals get through, then you can choose with more lines wire and the vertical wire distance can be smaller too.

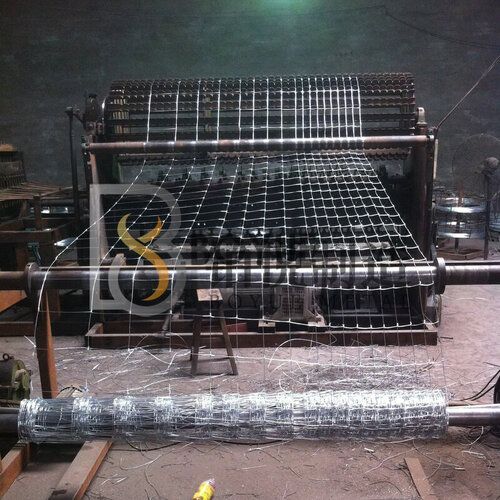

1-240RGFR01a.jpg 1-240RGFR0A4.png

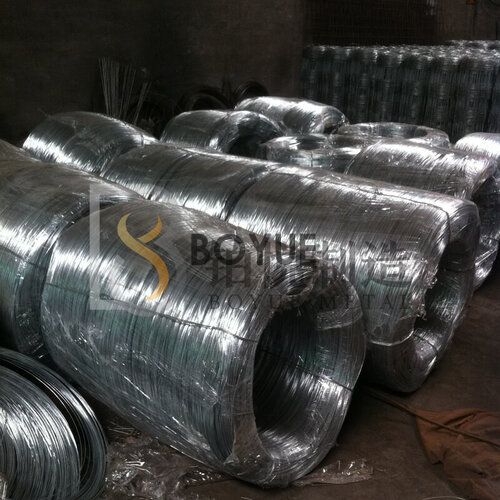

1-240RGF914248.jpg 1-240RGF9141F.jpg


Surface treatment:

Class A: Hot dipped galvanized hinge joint field fence (zinc coated:220-260g/m2)

Class B: Hot dipped galvanized hinge joint field fence (zinc coated:60-70g/m2)

Class c: Electro galvanized hinge joint field fence (zinc coated:15-20g/m2)



Specifications:

Edge wire: 1.70mm-3.60mm

Mesh wire: 1.70mm-2.50mm

Height:  0.8m,1.0m,1.2m,1.5m, 1.7m, 2.0m etc.

Length:  50m-200m



No.

Type

Specifications

Top & Bottom

Inner Dia.

1

7/150/813/50

102+114+127+140+152+178

2.5 mm

2.0 mm

2

8/150/813/50

89(75)+89+102+114+127+140+178

2.5 mm

2.0 mm

3

8/150/902/50

89+102+114+127+140+152+178

2.5 mm

2.0 mm

4

8/150/1016/50

102+114+127+140+152+178+203

2.5 mm

2.0 mm

5

8/150/1143/50

114+127+140+152+178+203+229

2.5 mm

2.0 mm

6

9/150/991/50

89(75)+89+102+114+127+140+152+178

2.5 mm

2.0 mm

7

9/150/1245/50

102+114+127+140+140+152+178+203+229

2.5 mm

2.0 mm

8

10/150/1194/50

89(75)+89+102+114+127+140+152+178+203+229

2.5 mm

2.0 mm

9

10/150/1334/50

89+102+114+127+140+152+178+203+229

2.5 mm

2.0 mm

10

11/150/1422/50

89(75)+89+102+114+127+140+152+178+203+229

2.5 mm

2.0 mm



Note: The type clarification

l  The first number means the quantities of line wires

l  The second number means the distance(mm) of stay wires

l  The third number means the height (mm)of mesh fence

l  The fourth number means the length(m) of mesh fence

l  Most important, we can produce the fence according to the customers' special requirements.



Characteristics:

Corrosion resistance, weather resistance properties, high tensile strength and serve for a very long time.



Application:

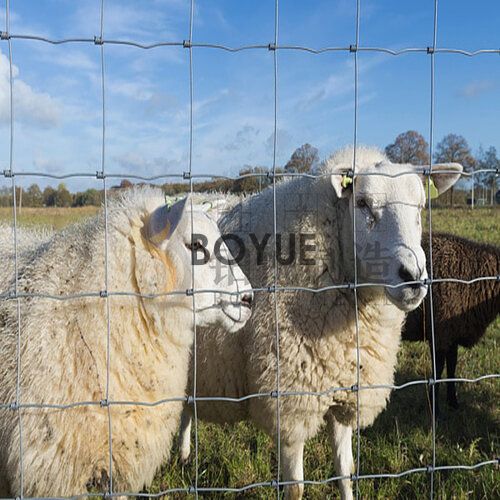

It is used in fields and grassland for breeding deer, cattle and other animals.

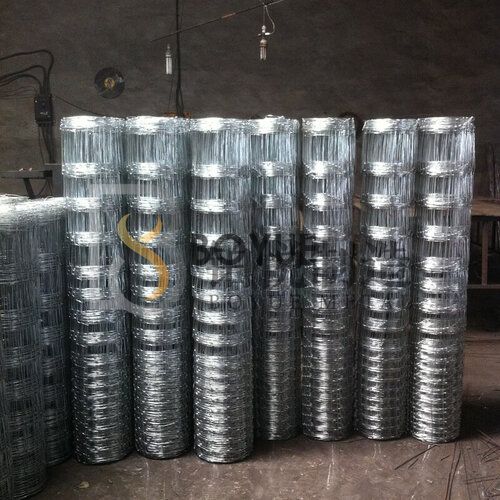

1-240RGG014Z9.jpg Hinge Joint Knot Fence(图6)


1-240RGH014626.jpg Hinge Joint Knot Fence(图8)

Packing:

Packed by plastic film and wooden pallet
