Product Description

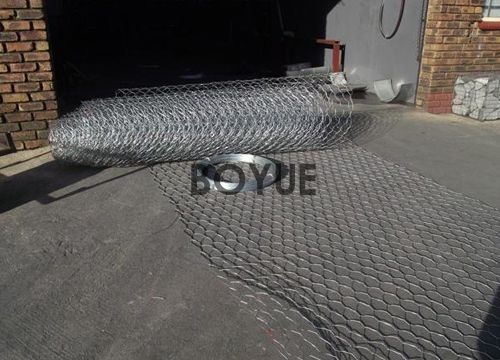

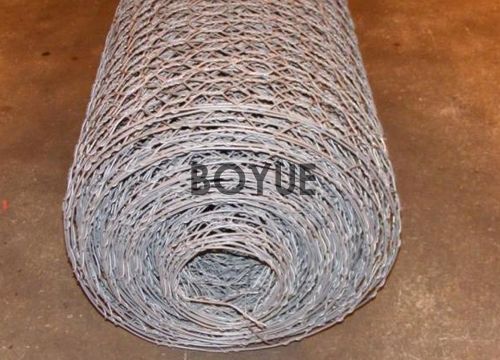

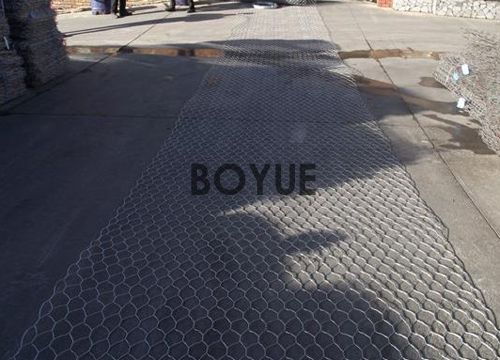

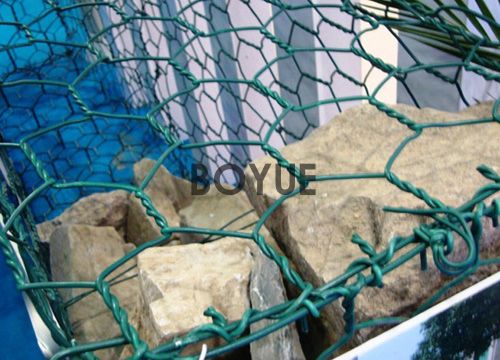

Gabions boxes are wire containers made of hexagonal wire netting. Wire diameter varies with the hexagonal nettings. For hexagonal wire netting with no PVC coating, the wire diameter ranges from 2.0mm to 4.0mm. For those PVC coated hexagonal wire netting, the outside diameter ranges from 3.0mm to 4.0mm. The wire of the outside frame edge is one wire gauge thicker than the wire used for hexagonal wire netting.
Advantages
l Economic. Just fill the stone into the gabions and seal it.
l Simple installation. No special technology needed.
l Weather proofs under natural destroy, corrosion resistant.
l No collapse even under big scope of deforming.
l Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
l Good permeation can prevent the damage by hydrostatic.

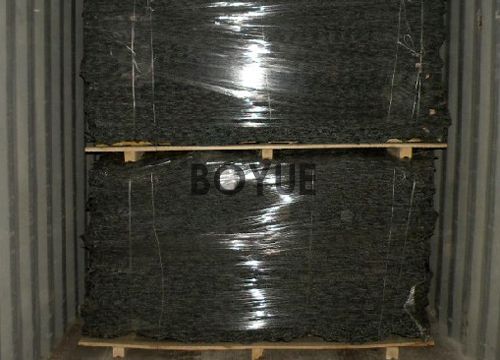

l Less transport freight. It can be folded together for transport and further installation.
l Flexibility, extra durable ,Monolithic and flexible structures ,tolerates differential settlement ,economical retaining systems ,Permeability of the front face
l No collapse even under big scope of deforming. Weather proof under natural destroys corrosion resistant.
Surface treatment
l Heavily zinc galvanized wire

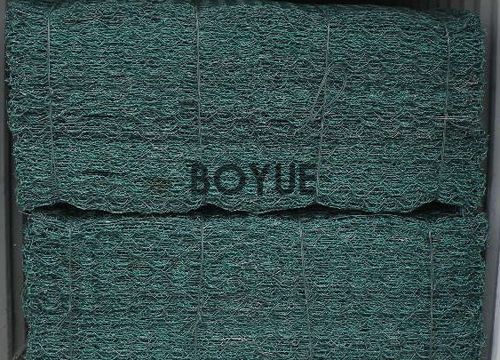

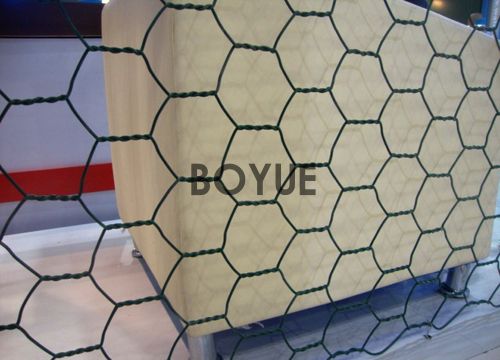

l As above plus heavy duty PVC coating
l Gal fan coated with a 95% Zinc + 5% Aluminum
l As above plus heavy duty PVC coating
Specification
Opening(mm) | Wire Dia.(Metal Wire)(mm) | Wire Dia. (PVC Coated) Inner/Outside(mm) | Roll width(m) |
|
60X80 | 2.0-2.8 | 2.0/3.0-2.5/3.5 | 4.3 |
80X100 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 4.3 |
80X120 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 4.3 |
100X120 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 4.3 |
100X150 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 4.3 |
120X150 | 2.0-4.0 | 2.0/3.0-3.0/4.0 | 4.3 |
Special Hexagonal Gabion specifications can be produced by the customer's requirements. |
Application
l Control and guide of water or flood
l Flood bank or guiding bank

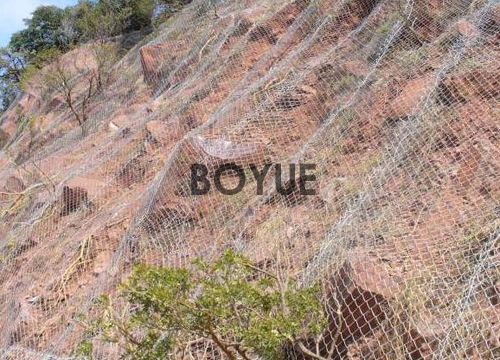

l Preventing of rock breaking
l Water and soil protection
l Strengthening structure of soil
l Protection engineering of seaside area
l Construction of railway embankments

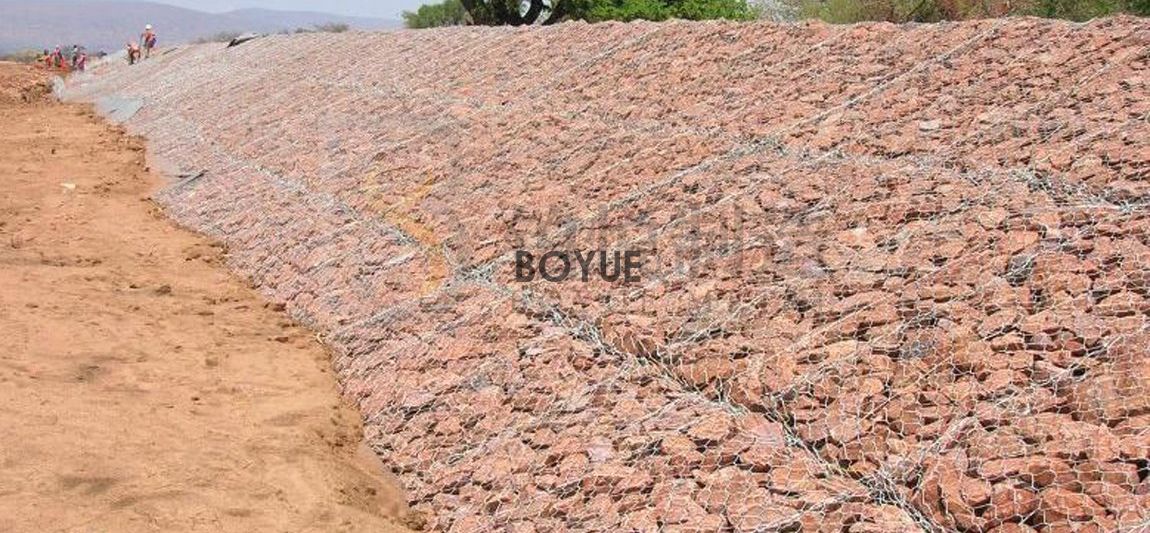

l Bridge, Coast, Bridge protection, Rivers banks protection

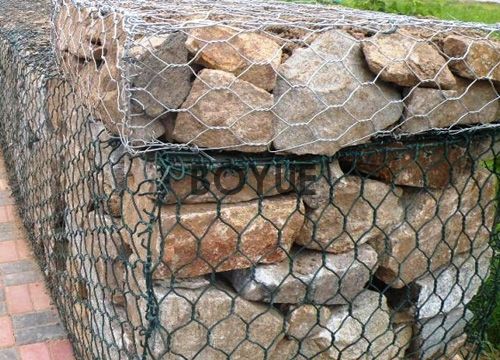

l On retaining walls used for their flexibility, robustness and high drainage capacity
