Product Description

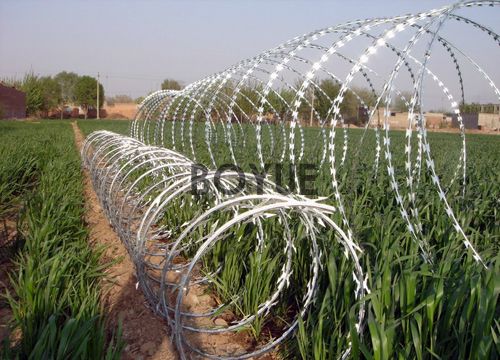

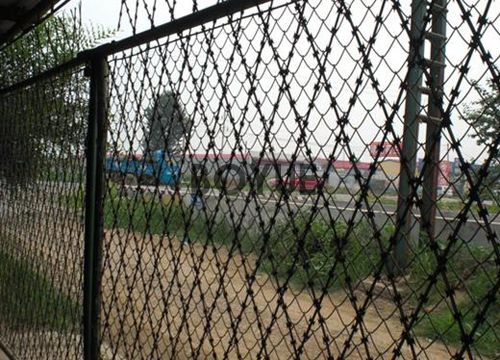

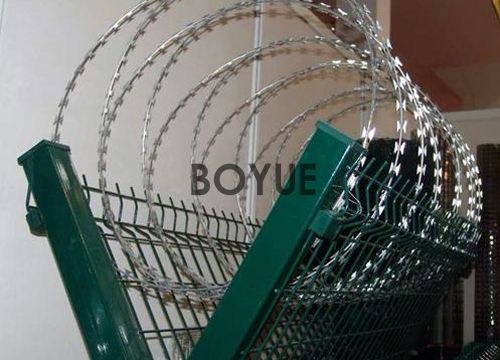

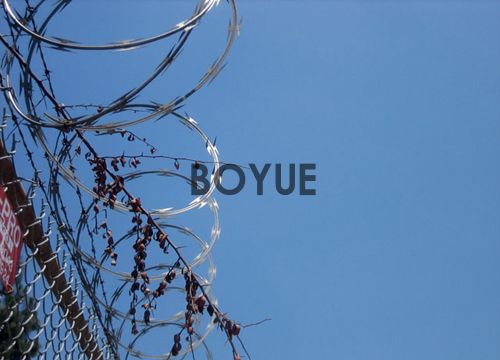

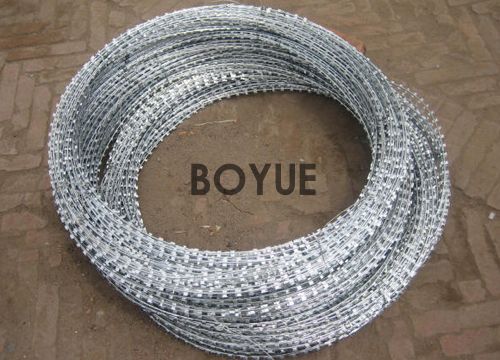

Razor barbed wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. Razor Barbed wire can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.
Currently, Razor Barbed wire has been widely used by many countries in military field, prisons, detention houses, government buildings and other national security facilities. Recently years, barbed tape has apparently become the most popular high-class fencing wire for not only military and national security applications, but also for cottage and society fence, and other private buildings.
Materials
Hot dipped galvanized steel sheet and wire, stainless steel sheet and wire: AISI430 and AISI304.
Features

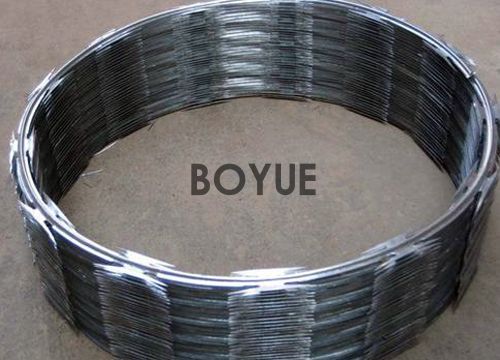

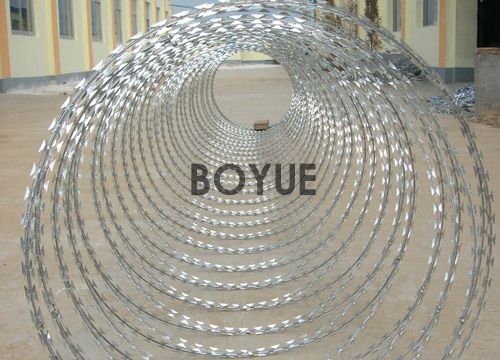

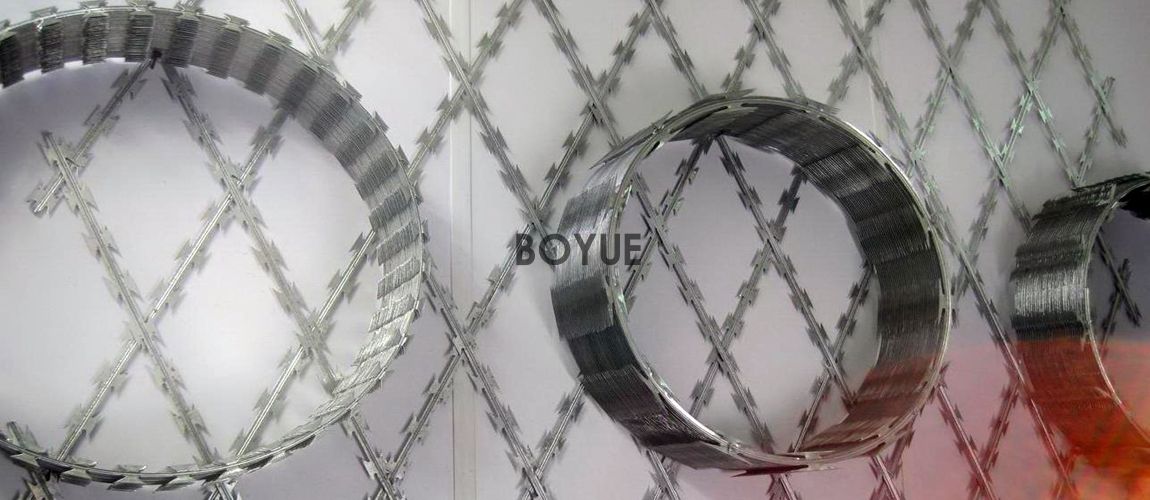

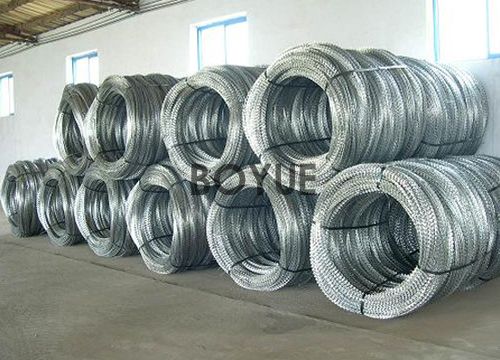

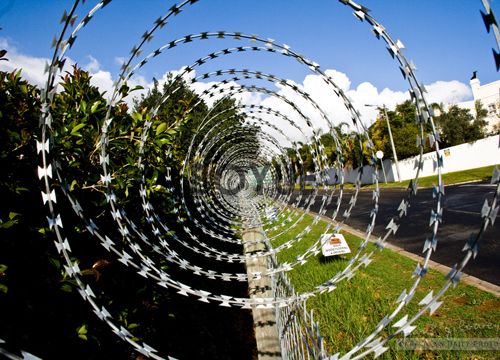

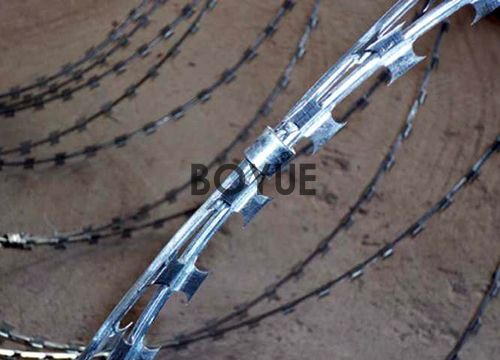

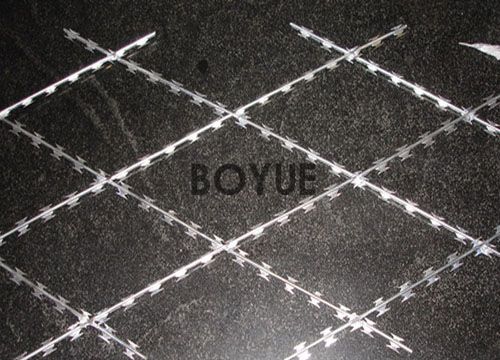

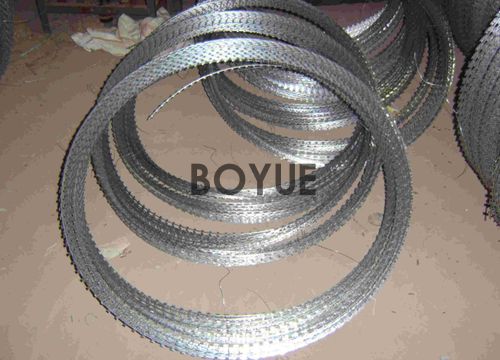

Razor wire in hot dipped galvanized sheet is economic cost compared with stainless steel razor wire. It has bright and beautiful blade of various types, offers good corrosion resistance. Galvanized razor wire can be supplied in straight line razor wire, single coils razor wire or crossed concertina razor coils.
Assortments

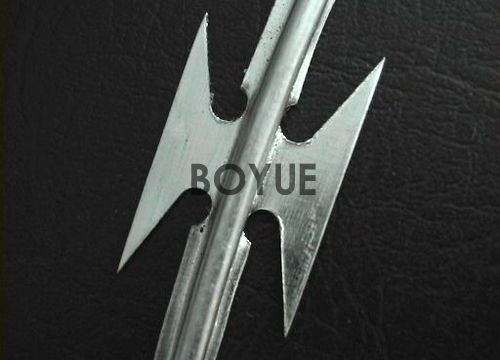

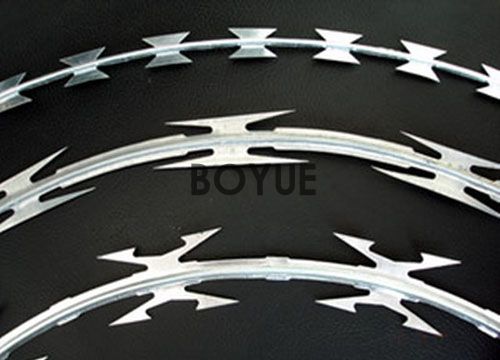

Blade Types for Galvanized Razor Wire: BT-10, BT-12, BT-18, BT-22, BT-28, BT-30, BT-60, BT-65, etc.
Sizes of Hot-dipped Galvanized Razor Wire: Different length from 450mm to 980mm while the length and the diameter of the razor wire can be customized.
Barbed Tape Wire Specification |
Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
450mm | 33 | 7-8M | CBT-60.65 | Single coil |
500mm | 56 | 12-13M | CBT-60.65 | Single coil |
700mm | 56 | 13-14M | CBT-60.65 | Single coil |
960mm | 56 | 14-15M | CBT-60.65 | Single coil |
450mm | 56 | 8-9M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
500mm | 56 | 9-10M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
600mm | 56 | 10-11M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
600mm | 56 | 8-10M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
700mm | 56 | 10-12M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
800mm | 56 | 11-13M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
900mm | 56 | 12-14M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
960mm | 56 | 13-15M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
980mm | 56 | 14-16M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
l Barbed Tape Concertina (CBT); Barbed Tape Obstacle (BTO)
l Standard materials are either galvanized or stainless steel.
l Standard styles products are shown in the tables above, special specifications are available on request.
Reference Number | Blade Style | Thickness | Wire Dia. | Barb Length | Barb Width | Barb spacing |
BTO-10 | | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
BTO-12 | | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
BTO-18 | | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
BTO-22 | | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
BTO-28 | | 0.5±0.05 | 2.5 | 28 | 15 | 45±1 |
BTO-30 | | 0.5±0.05 | 2.5 | 30 | 18 | 45±1 |
CBT-60 | | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
CBT-65 | | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
Notes:
Standard product styles are shown in the tables above; special specifications are available on request. Standard materials are either galvanized or stainless steel. In addition to these products, we also manufacture machines which produce them.
